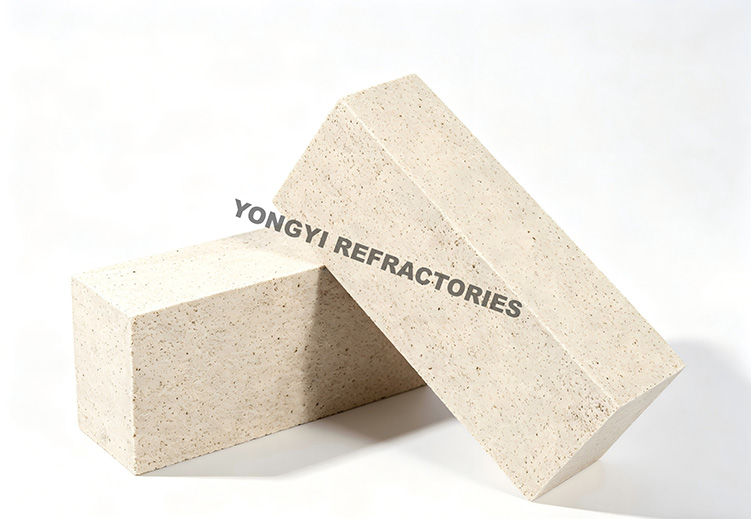

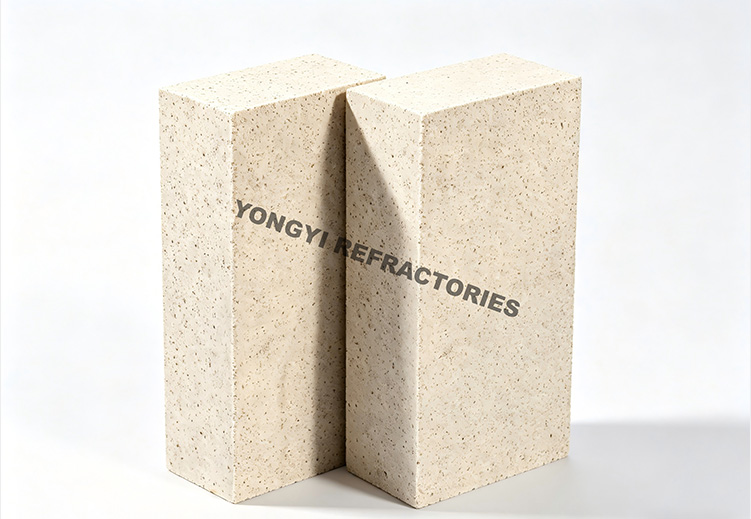

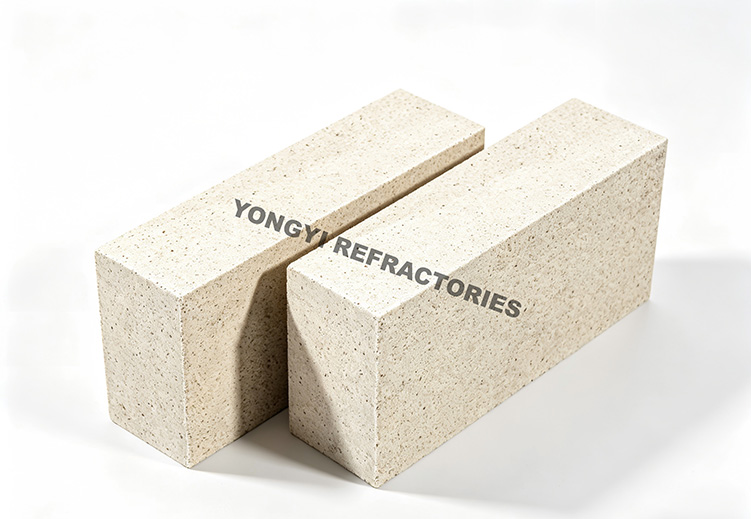

Lightweight Silica Bricks

Lightweight silica bricks feature low thermal conductivity, stable volume, high refractoriness under load, and high service temperature.

Send Message

Physical and Chemical Indicators

Item	GGR1.0	GGR1.1	GGR1.15	GGR1.2
SiO₂ %	≥ 91
Bulk Density (g/cm³)	≥ 1.0	≥ 1.1	≥ 1.15	≥ 1.2
Cold Crushing Strength (MPa)	≥ 2.0	≥ 3.0	≥ 5.0	≥ 5.0
0.1MPa Refractoriness Under Load (℃)	≥ 1400	≥ 1420	≥ 1500	≥ 1520
Permanent Linear Change (%)	1450℃×2h ≤ 0.5		1550℃×2h ≤ 0.5
Thermal Conductivity W/(m·K) 350±25℃	≤ 0.55	≤ 0.60	≤ 0.65	≤ 0.70
